Expandable Rubber Drum

Expandable Rubber drum  for grinding and polishing belts.

  • 150
  • 200
  • 40
  • 65
€54.00 €54.00 (tax excl.)

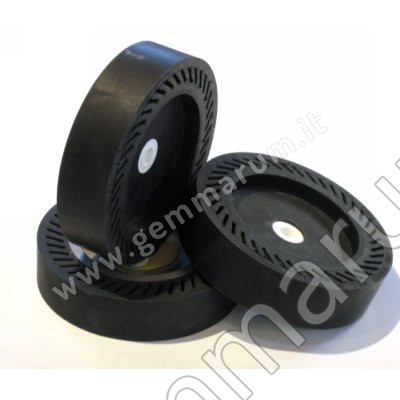

Expandable rubber drum

Angled expansion slots through the heavy rubber rim allow the drum to expand when rotated thereby locking the finishing belt in place. Belts can be quickly changed merely by stopping the machine and slipping off the old belt and sliding on a new one. In use, the resilient drum surface flexes to fit gemstone's contour to quickly remove grinding flats, yet the convex drum concentrates the cutting action so that scratches are quickly removed even from flat surfaces.

All wheels have 1" arbor holes and come with bushings to accommodate 1/2″, 5/8″ and 3/4″ arbors. (Arbor hole: 25.4mm (reduction rings: 19.05 / 15.88 / 12.7 mmm)

Wheel specifications

Drum size: 6" X 1-1/2", Belt size: 6" X 1-1/2" X 18-15/16", Maximum RPM: 2400

Drum size: 6" X 2-1/2", Belt size: 6" X 2-1/2" X 18-15/16", Maximum RPM: 2400

Drum size: 8" X 3", Belt size: 8" X 3" X 25-7/32", Maximum RPM: 1800

31-026/15
