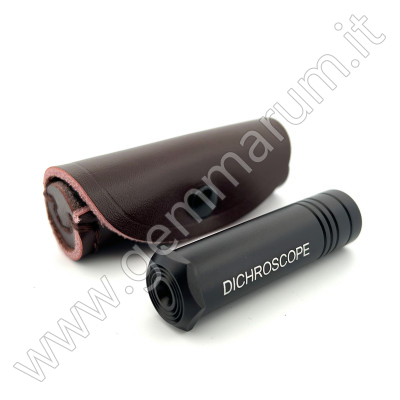

CALCITE DICHROSCOPE
Calcite Plus Dichroscope to determine Dichroism and Pleochroism of transparent, colored gems as an aid to identify them.
The dichroscope is a pocket-sized tool that can aid in the identification of gemstones. This tool is used to inspect pleochroism color in gemstones and to quickly separate some common stones from each other (such as ruby versus red garnet).
The calcite dichroscope is the preferred type of dichroscope used in gemology. It works because the calcite rhomb separates the polarized slow and fast ray emerging from the gemstone.
If you look at the viewing end of the dichroscope, two small windows are seen. A gemstone is placed in front of the aperture (slightly touching it) with a strong white light source (such as a penlight) directly behind the stone.
Light enters through the aperture of the dichroscope. The pleochroism colors inside the gemstone are separated by the calcite rhomb. The glass prisms on either side of the rhomb are there to guide the light straight through the instrument.
Technical Details:
■ with Calcite Christal
■ Viewing window : Ø 10 mm
■ Dimensions: Ø 16 mm x 60 mm (Höhe)
■ Weight: 22 g
