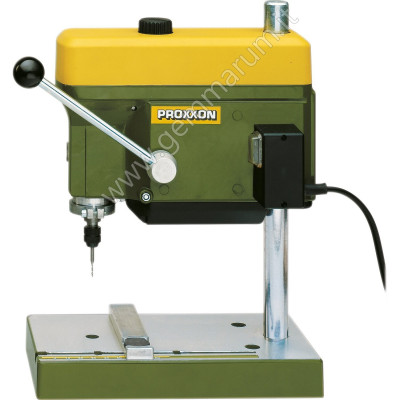

Bench Drill machine TBM 220

BENCH DRILL MACHINE TBM 220 - Plane-milled worktable of die-cast alumimium (220x120mm) with adjustable fence and scale as well as thereaded holes for securing the Micro coumpound table

• Solid steel column (20 x 340mm). Adjustable fence with scale. Solid, hard-chromed steel column, 340mm high, 20mm diameter. Super stable die-cast head with VDE approved 220 - 240V motor. Very quiet and of long life expectancy type. Power transmission by aluminium pulleys and flat belt. Three spindle speeds (triple torque at low speeds). Feed lever with adjustable depth scale.

• technical data

  • power : 230 Volt 50 - 60 Hz
  • spindle rotational speeds : 1.800, 4.700 and 8.500 rpm
  • Extremely high rotational accuracy, 30mmfeed
  • Throat depth (column to drill spindle) 140mm
  • Six triple slit precision collets for shaft sizes: 1 - 1.5 - 2 - 2.4 - 3 - 3.2 mm are included 3/8"thread
  • weight : approx. 3.3 kg
