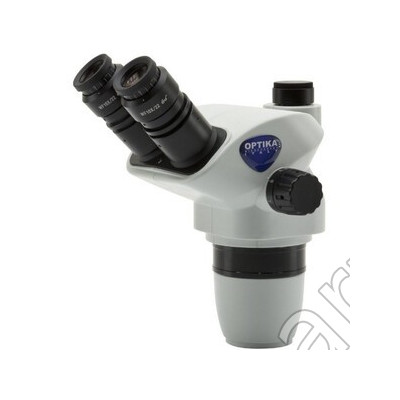

SZX Head - Trinocular

SZX Heads – Excellent Price/Performance Ratio For Any Laboratory

» Ideal for universities, experts & common routine lab requirements

» 3D Greenough view for high resoluted images & large field depth

» 22 mm field number and large working distance (up 110 mm)

» 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x

» Simultaneous eyepiece & camera observation (on SZX-T)

» Cost-effective solution for diversified applications

Head: Trinocular (split ratio: 50/50), 360° rotating on all stands and 45° inclined.

Interpupillary distance: Adjustable between 51 and 75 mm.

Dioptric adjustment: On both eyepieces.

Eyepieces: WF10x/22 mm, high eyepoint, secured by screw and with integrated rubber cups.

Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1)

Working distance: 100 mm.
